SCB14 type double-winding non-excitation tapchangingdry-type distribution transformer of 10kV

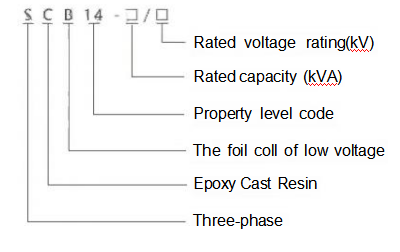

The SCB14 series is a three-phase, double-winding, off-circuit tap-changing dry-type distribution transformer featuring epoxy cast resin insulation. It is designed for 10 kV/0.4 kV power distribution systems, with a rated frequency of 50 Hz.
Featured๏ผ
- Three-phase, double-winding design
- Epoxy cast resin insulation
- 10 kV primary and 0.4 kV secondary voltage
- 50 Hz rated frequency
- Self-cooling or forced-air cooling
- Class F insulation and 100 K winding temperature rise
The SCB14 series is a three-phase, double-winding, epoxy cast resin dry-type distribution transformer designed for 10 kV/0.4 kV power distribution systems.
The transformer operates at a rated frequency of 50 Hz and supports self-cooling or forced-air cooling. Standard connection symbols include Dyn11 and Yyn0, with other configurations subject to specific requirements.
The specified operating conditions include installation at altitudes up to 1,000 m, ambient temperatures below 40ยฐC, Class F insulation, and a winding temperature rise of 100 K.
The SCB14 series provides a dry-type transformer solution for power distribution applications, with configurations determined by project requirements.
