This guide compares dry-type and oil-immersed transformers in terms of construction, performance, safety, cost, and applications. Understanding these key differences will help you select the right transformer solution for your project’s requirements.
Introduction
Transformers are critical components in power distribution systems, ensuring efficient voltage conversion and stable electricity supply. The two most common types—dry-type transformers and oil-immersed transformers—each have distinct advantages and ideal use cases. Dry-type transformers are increasingly adopted in commercial buildings and urban substations while oil-immersed transformers dominate high voltage industrial and utility applications globally. Choosing the right transformer type can impact safety, reliability, operational costs, and long-term performance. In this article, we break down the key differences, highlight practical applications, and provide guidance to help you make an informed decision.
What is a Dry-Type Transformer?
Dry-type transformers use air as the primary cooling medium, either through natural convection or forced air cooling. The windings are usually encapsulated in epoxy resin or varnish insulation, providing excellent insulation, fire resistance, and environmental safety. Dry-type transformers typically use cast resin for superior moisture resistance, or vacuum pressure impregnation (VPI) varnish for cost-effective solutions. Dry-type transformers are ideal for environments where fire safety and low maintenance are top priorities.
Key Features:
- Fire-resistant and environmentally friendly (no oil)
- Low maintenance requirements
- Suitable for indoor installations and populated areas
- Available in cast resin or VPI (Vacuum Pressure Impregnation) types

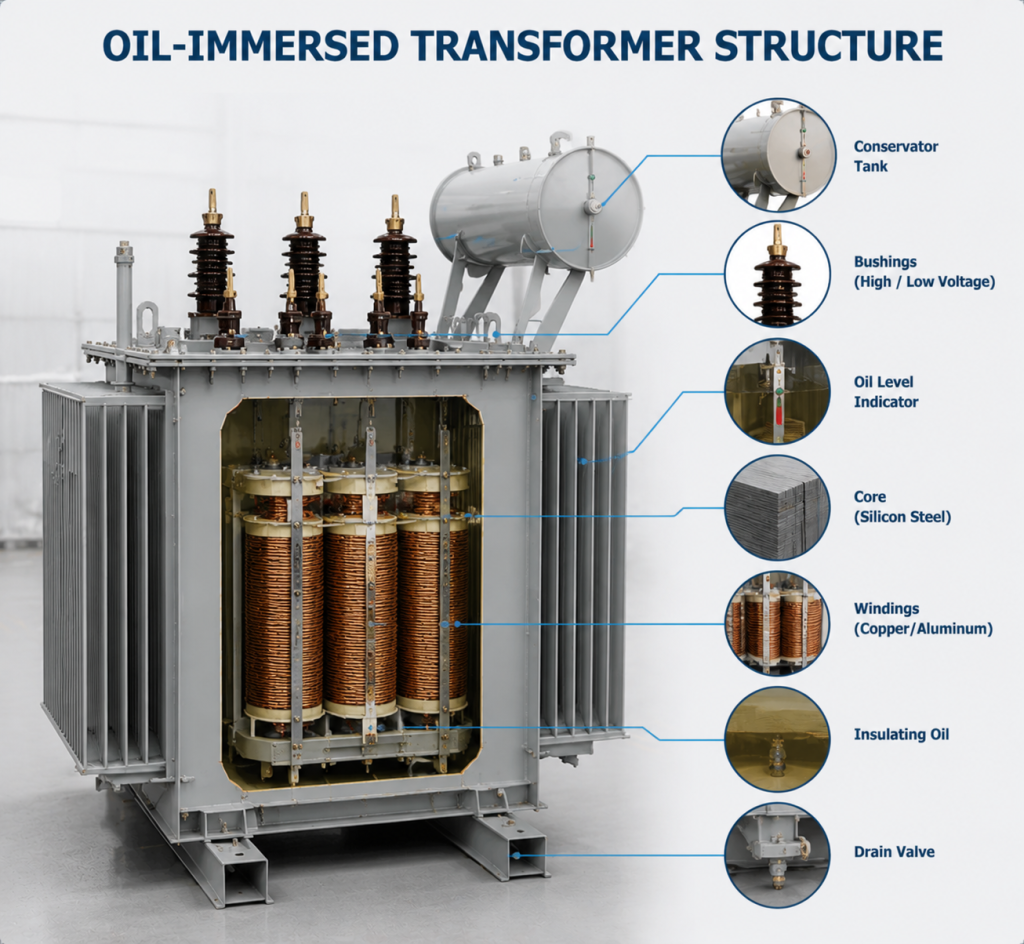

What is an Oil-Immersed Transformer?
Oil-immersed transformers use insulating oil to cool the core and windings. The oil also acts as an insulator, enhancing dielectric strength and improving heat dissipation. The insulating oil is typically mineral oil, although natural ester fluids are increasingly used as alternative, offering relatively better fire safety and environmental friendliness. Oil-immersed transformers are preferred for high-load, large-scale projects where cooling efficiency and capacity are essential.
Key Features:
- High efficiency and superior cooling performance
- Suitable for high voltage and large-capacity applications
- Commonly installed outdoors
- Requires regular maintenance and oil testing
Dry-Type vs. Oil-Immersed Transformers: A Comparison
| Feature | Dry-Type Transformer | Oil-Immersed Transformer |
| Cooling & Insulation | Air cooling, solid insulation | Oil cooling, oil insulation |
| Fire Safety | High (fire-resistant) | Good (risk of oil leakage or combustion) |
| Environmental Impact | Eco-friendly, no oil | Oil may be hazardous |
| Maintenance | Low | Regular oil testing and maintenance required |
| Installation | Indoor | Indoor or outdoor |
| Capacity & Voltage | Up to 35 kV, commonly≤10 MVA | Up to 500 kV+, any capacity |
| Initial Cost (for same ratings) | Higher | Lower |
| Operating Cost | Lower | Higher (maintenance involved) |
| Lifespan | 20–30 years | 25–40 years |
How to Choose the Right Transformer
Consider the following factors when selecting between dry-type and oil-immersed transformers:
- Application Environment:Indoor (dry-type preferred) vs. outdoor/harsh conditions (oil-immersed preferred)
- Safety Requirements:For locations requiring high fire safety standards (hospitals, malls, data centers), dry-type is safer
- Load & Capacity:High voltage or large-scale projects often require oil-immersed transformers
- Maintenance Capability:Dry-type transformers are ideal if regular maintenance is difficult
- Total Cost of Ownership:Evaluate not just initial cost but also operating, maintenance, and lifespan considerations
Conclusion
Both dry-type and oil-immersed transformers are essential in modern power systems. Understanding their differences allows you to select the most suitable solution for your project, ensuring safety, efficiency, and long-term value. At CMC Electric, we design and manufacture a wide range of high-performance transformers, including various cast resin dry-type transformers and oil-immersed transformers. With strict quality control, advanced production facilities, and customized solutions, we are your reliable partner for every power project.
Disclaimer: This article is for informational purposes only. Always consult a qualified electrical engineer before making final equipment selections.
